Name: Cold room quality puf foam sandwich wall panel/thermal wall/roof insulation 50mm thick sheets
Brand: Cold room quality puf foam sandwich wall panel/thermal wall/roof insulation 50mm thick sheets
SKU: PU Sandwich Panel, PU Sandwich Roof Panel
Price: 10.00 USD
Availability: InStock
Rating: 4.6 (157 reviews)

Характеристики Галерея Характер продукции Спросите цитату

Характеристики

Model Number: PU Sandwich Panel, PU Sandwich Roof Panel

Panel Material: Metal

Application: cold room/wall/roof

Material: Color Steel Sheet/stainless steel sheet/aluminum sheet/+PU panel

Advantage: Energy-saving+easy installation+fireproof+soundproof

Type: Polyurethane Sandwich Roof Panel

Certificate: CE ISO

Eco-friendly: 100%

Package: Sea Worth Package

Core material: PU Polyurethane

Surface: Color Coated Steel

Основная информация

Сертификация: CE ISO

Model Number: PU Sandwich Panel, PU Sandwich Roof Panel

Оплата и доставка Условия

Packaging Details: The surface covered with thin PVC film, put on wooden pallet

Supply Ability: 10000000 Square Meter/Square Meters per Month

Характер продукции

50mm thick thermal insulation quality puf foam sandwich wall panel sheets

Product Description

Application

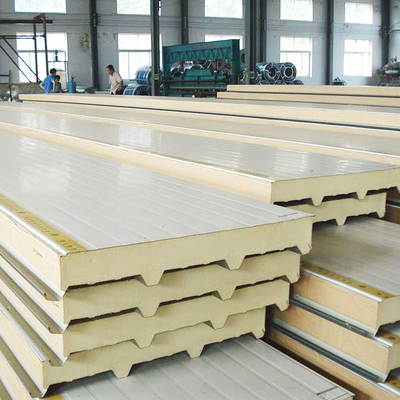

PU Sandwich panel (Polyurethane sandwiched panel )is composed of 2 layers of weather-proof colored steel sheets and jetted the hard forms of polyurethane between 2 layers which feature fireproof materials. It is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.

Features

High strength, wear resistant, oil resistant, shock absorption, heat preservation effect is good.

Parameters

Product name	Polyurethane(PU) Sandwich Board
Thickness	upper layer	0.3-0.8mm
	core material	75mm, 100mm, 120mm,150mm,200mm
	bottom layer	0.3-0.8mm
Effective Width	standard	950mm, 970mm,1000mm,1150mm
	other	can be customized
Length	can be customized,less than 12m
Density	40-42kg/m3
Weight	up to model
Color	any(generally white,blue,red,grey,)
Temp tolerance	-120-90℃
Fire resistance level	A2(incombustible)
Surface profile	flat,corrugated,big rib, small wave
Compression bearing	≥0.2Mpa
Material	upper layer	PPGI(prepainted galvanised steel)color steel sheet
	inner layer	PU foam(injected,not glued)
	bottom layer	PPGI(prepainted galvanised steel)color steel sheet
Parts	Eccentric hook used for connection of panel
	Film covering for protecting the surface layer
Heat transfer coefficient	0.019 W/M*K
Characteristics	heat insulation energy-saving	100mm width can keep temp at 0℃(suit for fresh keeping)
		150mm width can keep temp at -18℃(suit for cold storage)
		200mm width can keep temp at -38℃(suit for freezing)
	Water resistance and sound proof
	Weather proofing
	Fire retardant level:B
	High strength and bending resistance
	Easy quick installation and dismantling,labour cost saving
	Light weight compared to traditional stone or plaster panel
	Safe and green,good appearance,without formaldehyde
	Lifespan	can reach 15-20 years
Usage	Can be used for wall,roof,floor and partition of cold storage, mobile house, suburban housing, suburban housing,industrial plants, warehouses, supermarkets, hospitals, stadiums, activities room,clean workshop and reconstruction residence, villa, kindergarten, commercial building, remodeling of old structures, heat insulation fire places, airport, etc.
